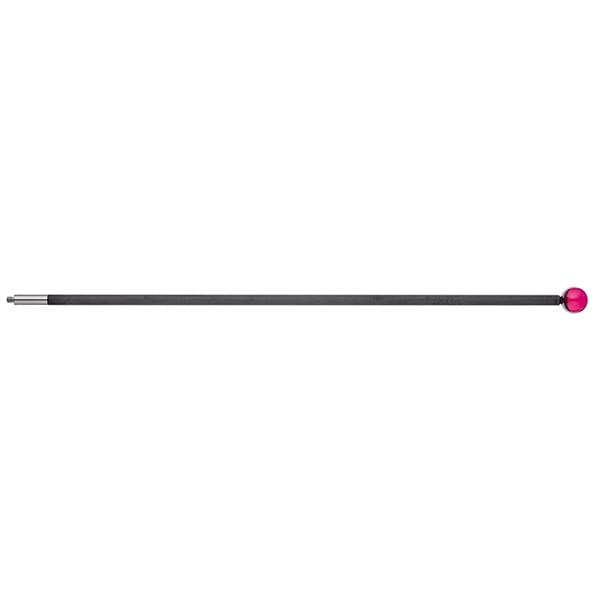

M3 Ø10 mm ruby ball, carbon fibre stem, L 100 mm

Part number: A-5003-7056

£178.31

M3 Ø10 mm ruby ball, carbon fibre stem, L 100 mm - 1

Stocked item - Dispatched between 2-3 working days.

Tiered pricing

Quantity	Price
1+	£178.31
5+	£169.39
10+	£160.48

All prices ex VAT

Quantity

Straight styli are designed to inspect simple features where direct, unobstructed contact with a measured surface is possible. A carbon fibre stem is very lightweight and ideal for... Read more

Free shipping on orders over £300.00.

Create account or sign in for faster checkout.

Buy direct or request a quote.

Technical table

Description

Equivalent to

Technical documentation

Technical table

name	value
Ball diameter (mm)	10
Centre styli	false
Effective working length (mm)	100
Holder material	Stainless steel
Overall length (mm)	100
Stem diameter (mm)	4
Stem material	Carbon fibre
Thread	M3
Tip material	Ruby

Description

Straight styli are designed to inspect simple features where direct, unobstructed contact with a measured surface is possible. A carbon fibre stem is very lightweight and ideal for applications where weight is critical. Ruby is regarded as the industry standard for stylus tips. It is one of the hardest materials available and suitable for most applications. Due to adhesive pickup, ruby tips are not recommended for scanning aluminium parts.

Equivalent to

Equivalent to Q-Mark part number: TM3-100105-G

Technical documentation

Technical document 1 (DOC)

Download
