50.0 mm x 50.0 mm corner viewer with M4 thread

Part number: R-VC-5050-4

$71.82

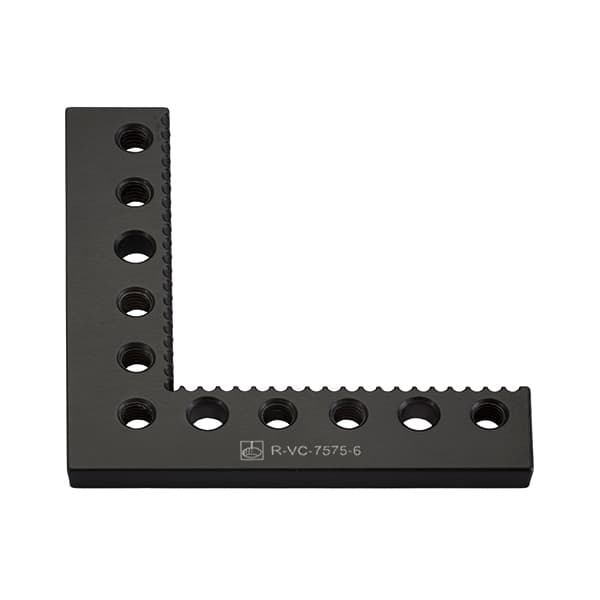

50.0 mm x 50.0 mm corner viewer with M4 thread - 1

50.0 mm x 50.0 mm corner viewer with M4 thread - 2

50.0 mm x 50.0 mm corner viewer with M4 thread - thumbnail 1

50.0 mm x 50.0 mm corner viewer with M4 thread - thumbnail 2

Stocked item - Dispatched between 2-3 working days.

Quantity

This corner viewer is used to locate a workpiece in a corner. The serrations allow backlighting along the sides of the workpiece. It is recommended for use on vision and multi-sens... Read more

Free shipping on orders over $500.00.

Create account or sign in for faster checkout.

Buy direct or request a quote.

Technical table

Description

Technical documentation

Technical table

name	value
Fixture type	Corner Viewer
Height (mm)	5
Length (mm)	50
Material	Aluminium
Measurement system	Metric
Thickness (mm)	10
Thread	M4
Width (mm)	50

Description

This corner viewer is used to locate a workpiece in a corner. The serrations allow backlighting along the sides of the workpiece. It is recommended for use on vision and multi-sensor machines.

Note: Included: socket head cap screws.

Technical documentation

Technical document 1 (DOC)

Download

Explore variants

2 products found

Explore variants

82.6 mm x 82.6 mm corner viewer with M6 thread
$81.90
Part numberR-VC-7575-6
Made to order - Typically a 4-6 week lead time.
$81.90
3.25 in × 3.25 in corner viewer with 1/4-20 thread
$85.58
Part numberR-VC-33-20
Stocked item - Dispatched between 2-3 working days.
$85.58
