82.6 mm x 82.6 mm corner viewer with M6 thread

Part number: R-VC-7575-6

$81.90

82.6 mm x 82.6 mm corner viewer with M6 thread - 1

Made to order - Typically a 4-6 week lead time.

Quantity

This corner viewer is used to locate a workpiece in a corner. The serrations allow backlighting along the sides of the workpiece. It is recommended for use on vision and multi-sens... Read more

Free shipping on orders over $500.00.

Create account or sign in for faster checkout.

Buy direct or request a quote.

Technical table

Description

Technical documentation

Technical table

name	value
Fixture type	Corner Viewer
Height (mm)	7
Length (mm)	82.6
Material	Aluminium
Measurement system	Metric
Thickness (mm)	19
Thread	M6
Width (mm)	82.6

Description

This corner viewer is used to locate a workpiece in a corner. The serrations allow backlighting along the sides of the workpiece. It is recommended for use on vision and multi-sensor machines.

Note: Included: socket head cap screws.

Technical documentation

Technical document 1 (DOC)

Download

Explore variants

2 products found

Explore variants

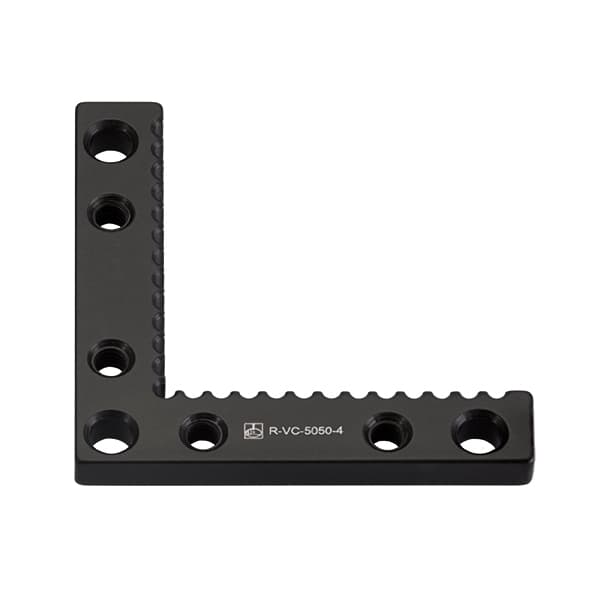

50.0 mm x 50.0 mm corner viewer with M4 thread
$71.82
Part numberR-VC-5050-4
Stocked item - Dispatched between 2-3 working days.
$71.82
3.25 in × 3.25 in corner viewer with 1/4-20 thread
$85.58
Part numberR-VC-33-20
Stocked item - Dispatched between 2-3 working days.
$85.58
