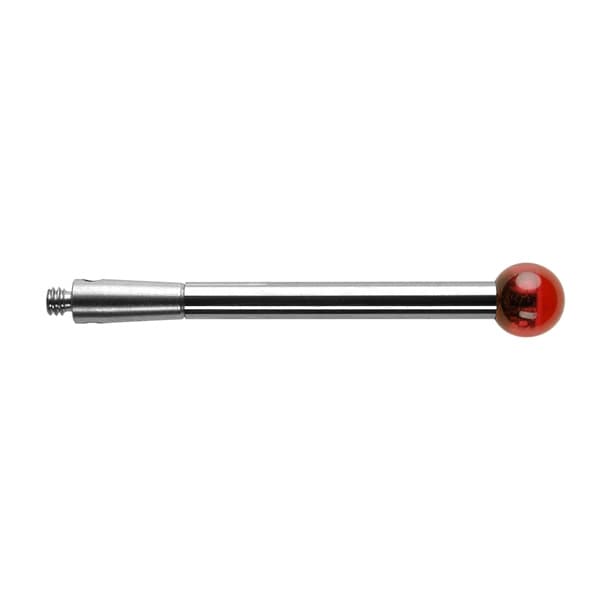

M2 Ø5 mm ruby ball, tungsten carbide stem, L 40.25 mm, EWL 40.25 mm

Part number: A-5003-0048

€67.00

M2 Ø5 mm ruby ball, tungsten carbide stem, L 40.25 mm, EWL 40.25 mm - 1

M2 Ø5 mm ruby ball, tungsten carbide stem, L 40.25 mm, EWL 40.25 mm - 2

M2 Ø5 mm ruby ball, tungsten carbide stem, L 40.25 mm, EWL 40.25 mm - thumbnail 1

M2 Ø5 mm ruby ball, tungsten carbide stem, L 40.25 mm, EWL 40.25 mm - thumbnail 2

Stocked item - Dispatched between 2-3 working days.

Tiered pricing

Quantity	Price
1+	€67.00
5+	€63.65
10+	€60.30

All prices ex VAT

Quantity

Straight styli are designed to inspect simple features where direct, unobstructed contact with a measured surface is possible. A tungsten carbide stem provides exceptional rigidity... Read more

Create account or sign in for faster checkout.

Buy direct or request a quote.

Technical table

Technical documentation

Technical table

name	value
Ball diameter (mm)	5
Centre styli	false
Effective working length (mm)	40.25
Holder material	Stainless steel
Overall length (mm)	40.25
Stem diameter (mm)	2.5
Stem material	Tungsten carbide
Thread	M2
Tip material	Ruby

Description

Straight styli are designed to inspect simple features where direct, unobstructed contact with a measured surface is possible. A tungsten carbide stem provides exceptional rigidity, particularly for styli with small ball and stem diameters. Ruby is regarded as the industry standard for stylus tips. It is one of the hardest materials available and suitable for most applications. Due to adhesive pickup, ruby tips are not recommended for scanning aluminium parts.

Equivalent to

Equivalent to Mitutoyo part number: K651267.
Equivalent to Q-Mark part number: TM2-5042.5.
