Technical table

name	value
Ball diameter (mm)	5
Centre styli	false
Effective working length (mm)	30.1
Holder material	Stainless steel
Overall length (mm)	30.1
Stem diameter (mm)	3
Stem material	Carbon fibre
Thread	M2
Tip material	Ruby

Description

Straight styli are designed to inspect simple features where direct, unobstructed contact with a measured surface is possible. A carbon fibre stem is very lightweight and ideal for applications where weight is critical. Ruby is regarded as the industry standard for stylus tips. It is one of the hardest materials available and suitable for most applications. Due to adhesive pickup, ruby tips are not recommended for scanning aluminium parts.

Tightening tool recommended: A-5003-2300

Equivalent to

Equivalent to Q-Mark part number: TM2-5032.5-G.

Technical documentation

Technical document 1 (DOC)

Download

Related products

€65.00

M2 Ø5 mm ruby ball, tungsten carbide stem, L 30 mm, EWL 30 mm

Part number: A-5003-0047

€96.00

M2 Ø5 mm ruby ball, carbon fibre stem, L 50 mm, EWL 50 mm

Part number: A-5003-2286

€75.00

M2 Ø5 mm ruby ball, ceramic stem, L 50 mm, EWL 50 mm

Part number: A-5003-0066

€67.00

M2 Ø5 mm ruby ball, tungsten carbide stem, L 40.25 mm, EWL 40.25 mm

Part number: A-5003-0048

€73.00

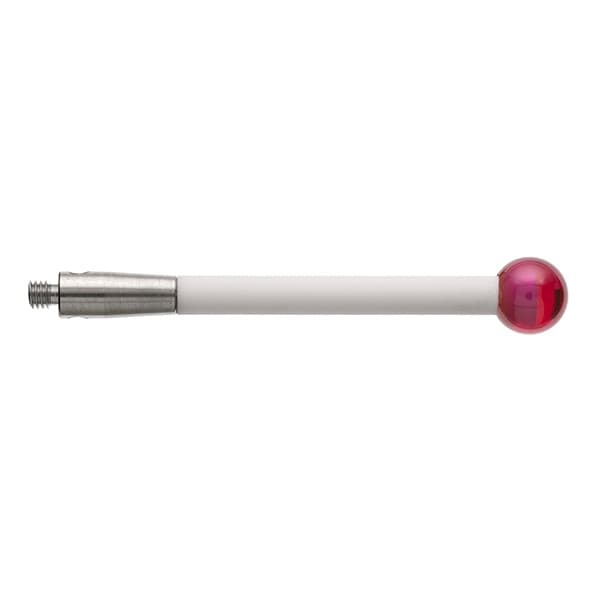

M2 Ø5 mm ruby ball, ceramic stem, L 30 mm, EWL 30 mm
